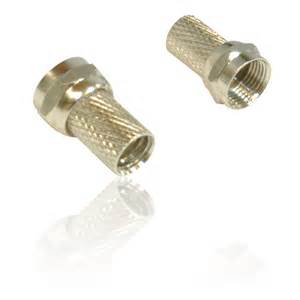

F Plug RF Antenna Connector Copper Twist On F Connector RG6 For TV
Product Description :
F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less , and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV , MATV , CCTV and related consumer television products .
These bulk twist - on F- type male connectors for RG6 cables are perfect for replacing worn out connectors or for making your own RG6 cables . One-piece construction and tool - less twist - on design makes working with your high - speed coaxial cables easy.
Instructions:
Strip inside insulation back 3/4"
Remove 3/8" of shielding
Remove 1/4" of foam insulation
Twist braid clockwise, making sure none of it is contacting the inner wire
Screw the connector 1/4" onto the outer shield
Product Specification :
| Technical Characteristics |
| Temp.range | -40℃~+60℃ |
| Impedance | 75 ohm |
| Frequency range | 0~1GHz |
| Center conductor withdrawal force | ≥0.49N |
| contact resistance | center conductor | ≤10mohm |
| outer conductor | ≤5m ohm |
| Insulation resistance | ≥1000mohm |
| Withestand voltage | At sea level | 500V rms |
| Working voltage | 170V rms |
| V.S.W.R | Straight | ≤1.20 |
| Angle | ≤1.30 |
| Durability | 500 cycles |
About us :
1.We specialize in RF connectors , RF cable assembly and RF connectors . The main products we manufacture are RF connectors, MCX , MMCX , SMA , SMB , N , RF connector cable Our products are sold to different areas of overseas markets .
2. We have passed ISO9001 quality certification and our products
antenna connector comply with RoHS requirement .
3. We have professional technical development team . we have advanced NC processing equipment and precise test equipment .
4. Our principle is to meet customers’ requirement by good service and high-quality products . The prices of products….. are very competitive and reasonable .
5. We are committed to providing the best products….. to our customers with quickest delivery and best price .
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
